ATI 95-Gallon Transfer Tank & Toolbox Review: The Contractor's Workhorse

It was 4:30 AM in the high desert of Wyoming, the kind of cold that turns diesel into jelly and makes your skin stick to a wrench. I was staring at a backhoe that had run dry in a trench, and my nearest fuel source was a forty-mile round trip over washboard gravel. My truck at the time had a cheap, single-wall plastic tank and a flimsy chest box that had jammed shut two days prior. I spent forty-five minutes fighting a frozen lock and a leaking hose. That was the day I realized that 'budget-friendly' gear is just a polite way of saying 'it’s going to fail when you need it most.' If you're a professional, your truck isn't a hobby; it’s a mobile workstation, a fuel depot, and a vault for three months' worth of wages in tools.## What We're TestingToday, we're tearing into a piece of gear designed to solve that exact 'middle of nowhere' crisis: the ATI 95 Gallon Black L-Shape Transfer Tank + Toolbox Combo. This isn't just a box; it's a combined logistics system. We’re talking about a 95-gallon L-shaped fuel cell integrated with a heavy-duty storage chest that sits low enough in the bed to maintain your rear-view visibility. We didn't just look at the specs in a catalog. We bolted this thing into a RAM 3500 work truck, filled it with off-road diesel, packed the chest with impact wrenches and grease guns, and took it through three weeks of mud, vibration, and sub-zero starts. We evaluated the structural integrity of the 0.125-inch marine-grade aluminum, the weather-stripping seal, the baffle system inside the tank that prevents fuel slosh from upsetting your truck’s handling, and the security of the locking mechanism. This is a review for the guy who can’t afford to have his fuel tank leak or his tools stolen while he’s twenty miles off the pavement.

The CompetitionIn this market, you’ve got several big players, and I’ve broken my back installing most of them over the years. First up, you have the Weather Guard 360-3-01. It’s a 100-gallon steel beast. Weather Guard builds a tank that can probably survive a mortar strike, but being 14-gauge steel, it’s heavy before you even add a drop of fuel. It’s also prone to rust if the powder coat gets chipped by a stray sledgehammer. Next, there’s the UWS TTB-72-L-COMBO. It’s a 75-gallon aluminum setup that is significantly cheaper, but you feel where they saved the money. They use 0.063-inch aluminum, which is essentially half the thickness of the ATI unit. In my experience, those thinner walls tend to bow and flex when the tank is full and you’re hitting potholes. Then you have the Dee Zee DZ95 series. It’s a solid, mid-range aluminum combo, often found in brite-tread. It’s a workhorse, but the latches and gas struts often feel like the weak point after a season of heavy use. After running the gauntlet, the ATI 95 Gallon Black L-Shape Transfer Tank + Toolbox Combo from Big League Accessories stands out as the Editor’s Pick. Why? It’s the materials. ATI uses 0.125-inch thick aluminum—that’s the heavy-duty stuff. It gives you the weight savings of aluminum with the structural rigidity you usually only find in heavy steel tanks. Plus, the L-shape design is maximized for 8-foot beds while still fitting many short-bed configurations with room to spare for your fifth-wheel hitch.

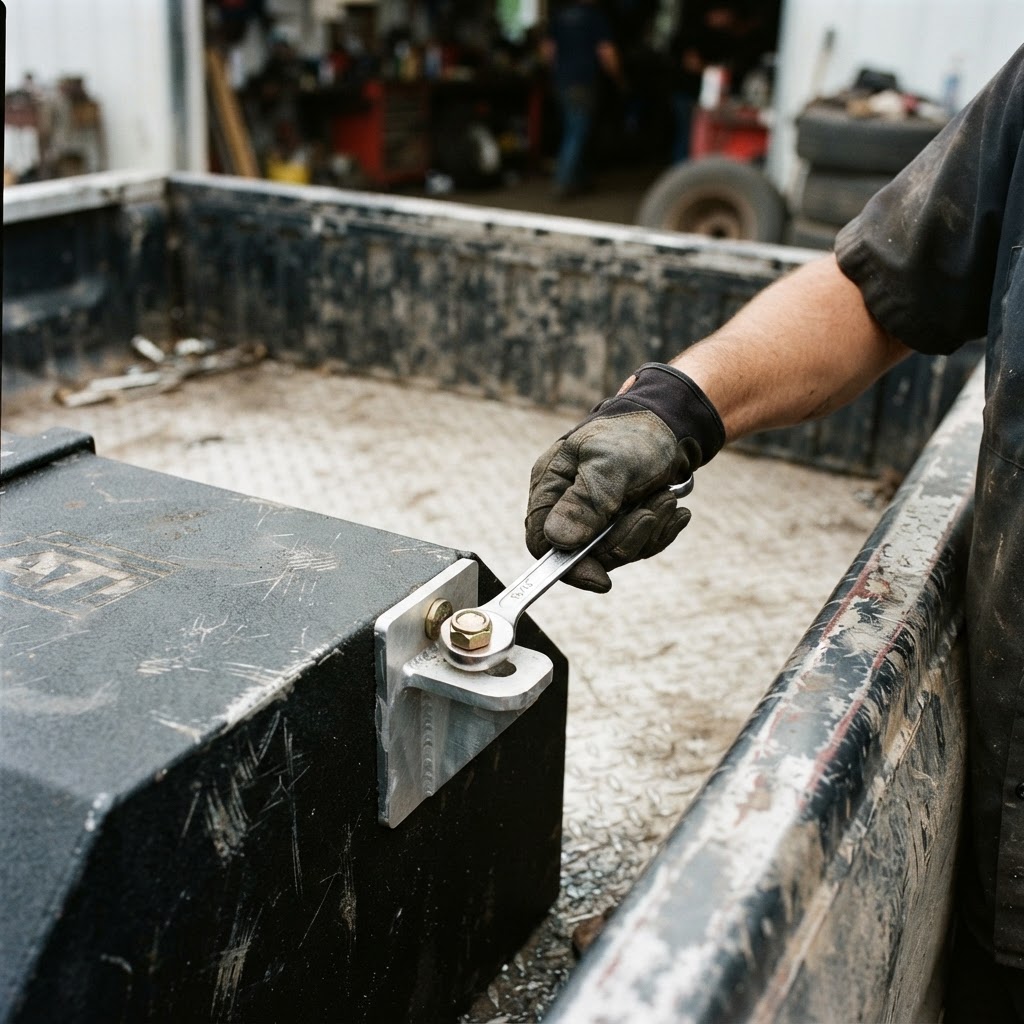

Installation & FitInstalling one of these isn't a one-man job, mostly because you want to get the alignment perfect before you start drilling through your truck bed. The ATI 95 Gallon Black L-Shape Transfer Tank + Toolbox Combo features integrated mounting tabs. You’ll need a heavy-duty drill and 1/2-inch grade-8 bolts (I always swap out the standard hardware for grade-8 to handle the shear forces of a 700-pound full fuel tank). One 'gotcha' for the DIY crowd: this tank is designed for non-flammable fuels (diesel). If you’re thinking of hauling gasoline, you need to look at specialized, DOT-permitted tanks that meet much stricter venting and material standards. For fitment, this L-shape unit is 57 inches wide at the base, meaning it clears the wheel wells of most full-size pickups with ease. However, if you have a spray-in bedliner, account for that extra quarter-inch of thickness when measuring your bed width. The fuel fill neck is positioned for easy access, but make sure your pump hose is long enough to reach the far side of your rig if you’re filling up at a commercial station. Total install time, including wiring up a 15-GPM pump (sold separately), took us about three hours.

Long-Term DurabilityAluminum is king for longevity because it doesn't rust, but not all aluminum is equal. The ATI tank is pressure tested to 5 PSI—which doesn't sound like much until you realize that fuel sloshing in a 95-gallon tank creates massive internal pressure. The internal baffles in this unit are welded securely; after three weeks of washboard roads, we didn't hear a single 'clunk' of a broken baffle, which is a common failure point in cheaper tanks. The black powder coat is thick and resisted scratching even when we threw a heavy chain over the lid. The lid itself uses a full-length stainless steel piano hinge, which is exactly what you want. Small, individual hinges eventually sag under the weight of a heavy lid, leading to seal failure. This seal stayed watertight through two heavy rainstorms and a high-pressure car wash. The paddle handles are stainless steel and felt crisp, never catching or requiring that 'double-jiggle' to open that plagues lower-end boxes.## Pros & ConsPros:- Built Like a Tank: The 0.125-inch aluminum construction is the thickest in its class, providing exceptional dent resistance.- Optimized Storage: The L-shape design allows the toolbox to sit lower, providing a cleaner look and better visibility.- Internal Baffling: Heavy-duty baffles minimize fuel movement, ensuring the truck remains stable during cornering and braking.- Superior Finish: The black powder coat isn't just for looks; it’s a durable barrier against road salt and chemicals.- Made in the USA: High-quality welds and pressure testing you can trust on a professional job site.Cons:- Premium Pricing: At $1,670.99, it’s a significant investment compared to budget aluminum brands.- Pump Not Included: You’ll need to factor in the cost of a high-quality transfer pump and wiring kit.- Weight When Full: When carrying the full 95 gallons of diesel plus tools, you’re adding nearly 900 lbs to the bed—ensure your suspension is up to the task.

The VerdictIf you’re a weekend warrior who just needs a place to keep a tow strap and a jumper cable, this ATI combo is overkill. But if you’re a contractor, a farmer, or an owner-operator who loses money every minute your equipment is sitting idle waiting for a fuel truck, the ATI 95 Gallon Black L-Shape Transfer Tank + Toolbox Combo is one of the best investments you can make for your rig. It’s built to a higher standard than the mass-market boxes found at big-box retailers. The one thing to watch for: always check your mounting bolts after the first 500 miles. A full tank is a lot of mass, and even the best hardware can settle after a few heat cycles and vibrations. Buy it once, bolt it down, and stop worrying about your fuel supply.
