It’s 4:30 AM in the high desert, and the thermometer on my dash is screaming 14 degrees. I’m staring at a D9 dozer that’s bone dry, sitting at the bottom of a grade that a fuel truck won't touch until the sun comes up and the mud firms up. In this business, if the iron isn't moving, you’re losing money—roughly five hundred bucks an hour in lost labor and schedule slippage. I don’t have time to wait for a delivery. I reach for the nozzle tucked behind my cab, flip the switch on the pump, and let forty gallons of diesel gravity-feed and pump into the beast.
That’s why we carry transfer tanks. But we don't just carry fuel; we carry tools. Space in a truck bed is more valuable than prime real estate in downtown Manhattan. If you’ve ever tried to cram a full-sized auxiliary tank and a separate crossover toolbox into a short-bed pickup, you know the frustration. You end up with six inches of useless space in between and a bed that can’t even fit a sheet of plywood anymore. This is where the L-shape combo units come in, and today, we’re looking at which ones actually survive the vibration of a washboard road and which ones leak at the seams after six months.
What We’re Testing
In this field test, we aren’t looking at the cheap 'white-label' tanks you find at the big-box farm stores. We’re looking at professional-grade equipment designed for daily refueling of skid steers, generators, and heavy machinery. An L-shape transfer tank is specifically engineered so the 'foot' of the L slides under a standard crossover toolbox, or in the case of our top picks, integrates the toolbox directly into the unit.
We evaluated these units based on four hard-nosed criteria. First, structural integrity—we look at the thickness of the material (measured in decimals of an inch, not just 'heavy duty' marketing fluff) and the quality of the weld beads. Second, baffling—fuel weighs about 7 pounds per gallon; 50 gallons sloshing back and forth is 350 pounds of kinetic energy trying to rip your mounting bolts out of the bed. Third, weather-stripping and security—if your tools get wet or your fuel gets stolen, the tank is a liability. Finally, pump clearance—can you actually mount a standard 15-GPM pump without hitting the cab or the toolbox lid?
The Competition
To find the best, you have to look at the giants. I’ve bolted down dozens of these over the years, and a few brands always come up in the conversation.
First, there’s Weather Guard. Specifically, their Model 350-3-02. It’s a 50-gallon L-shape beast made of 14-gauge steel. It’s heavy—nearly 200 pounds empty—and it’s built like a tank. The powder coating is top-tier, and they offer a limited lifetime warranty that actually means something. But here’s the rub: it’s steel. It will eventually rust if you scratch the finish tossing a heavy chain into the bed, and it costs upwards of $1,500 just for the tank. You still have to buy the toolbox separately, and the footprint is massive.
Then you have Dee Zee. Their Blue Label series, like the DZ91752X, is a popular mid-range choice. It’s a combo unit that holds about 92 gallons of fuel. It’s aluminum, which we like for weight savings, and it’s generally priced around $1,300. However, I’ve found their 'Brite-Tread' aluminum to be a bit thinner than the professional-grade stuff. On the job site, I’ve seen these lids warp under the weight of a guy standing on them to reach a ladder rack. It’s a solid 'weekend warrior' tank, but for high-intensity use, the welds can be a weak point.
UWS is another heavy hitter. Their 50-gallon L-shape (TT-50-L-B) is a staple. It’s affordable—usually under a grand—and the micro-seal stripping is decent. But like the Dee Zee, it uses .063-inch thick aluminum. In my experience, if you're hauling through rough terrain, that thinner aluminum flexes too much, which leads to stress cracks near the mounting tabs.
After running the numbers and the miles, our Editor's Pick is the ATI 47 Gallon Silver L-Shape Transfer Tank + Toolbox Combo. Why? Because ATI uses .100-inch thick aluminum diamond plate. That is significantly thicker than UWS or Dee Zee. It hits the 'Goldilocks' zone of weight and strength. It’s more affordable than a Weather Guard setup but offers better corrosion resistance. It’s a dedicated, integrated unit that doesn't waste an inch of bed space.
| Product | Capacity | Material | Price Range | Warranty/Notes |
|---|---|---|---|---|
| ATI 47 Gal L-Shape Combo | 47 Gallons | .100 Aluminum | $1,168.99 | 1-Year / High-Grade .100 Alum |
| Weather Guard 350-3-02 | 50 Gallons | 14-Gauge Steel | $1,500 - $1,650 | Limited Lifetime / Very Heavy |
| Dee Zee Blue Label Combo | 92 Gallons | .063 Aluminum | $1,200 - $1,350 | Limited Lifetime / Thinner Alum |
| UWS L-Shape (TT-50-L-B) | 50 Gallons | .063 Aluminum | $900 - $1,050 | 1-Year / Budget Friendly |
Installation & Fit
Listen, don't trust the 'universal fit' labels blindly. Before you buy the ATI 47 Gallon Silver L-Shape Transfer Tank + Toolbox Combo, grab a tape measure. You need to check your bed depth. This unit stands about 23 inches high. If you have a shallow-bed truck, the toolbox might sit higher than the bed rails, which looks like hell and kills your rear visibility.

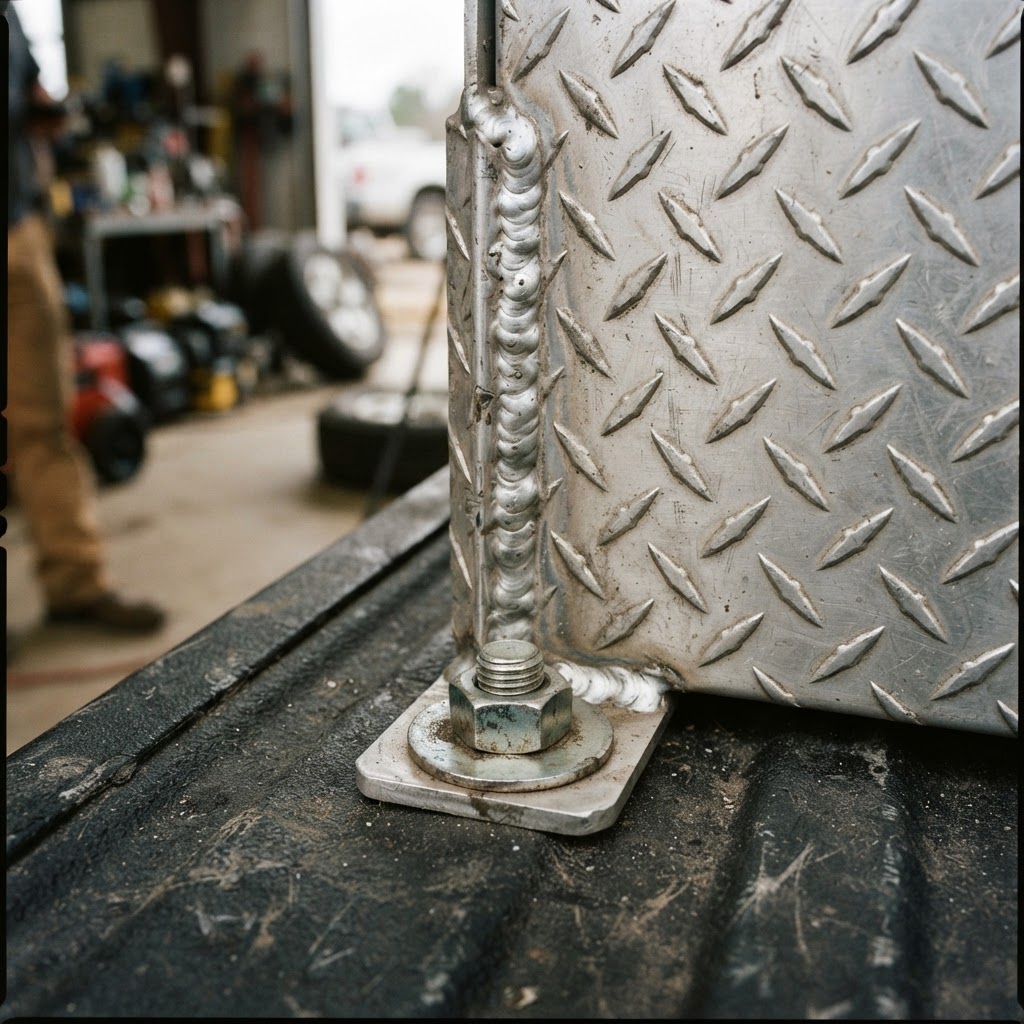

Mounting Tip: You’re going to be drilling through your truck bed. Don't just zip-screw it in. Use the provided heavy-duty bolts and, for the love of all things holy, use a backing plate or a large fender washer underneath the bed. If you don't, the vibration will eventually 'cookie-cutter' those bolts right through the thin sheet metal of your truck.
The Plumbing: The ATI comes with a 2-inch NPT reinforced bung. This is standard for most 12V pumps like Fill-Rite or GPI. Make sure you use a fuel-rated thread sealant—not standard plumbing Teflon tape. Diesel will eat right through the cheap stuff. Also, ground the tank. Static electricity and fuel vapors are a bad mix; run a ground wire from the pump to the truck's frame. It’ll take you an extra ten minutes, but it might save your life.
Long-Term Durability
I’ve seen a lot of guys buy a tank in the spring and complain by winter. Here’s the reality of a transfer tank's life: it's a brutal cycle of heat expansion and cold contraction.
Corrosion: This is where the ATI's aluminum construction shines. If you’re in the rust belt or working near the coast, a steel tank is a ticking time bomb. Even with good powder coating, the inside of a steel tank can sweat, leading to internal rust that clogs your filters and destroys your equipment's fuel injectors. Aluminum doesn't have that problem.
Vibration: This is the silent killer. A 47-gallon tank is heavy. If the baffles aren't welded correctly, they’ll snap inside the tank, and you’ll hear a 'thunk' every time you hit the brakes. The ATI units use heavy-duty internal baffles that are fully welded. I’ve checked these after 20,000 miles of gravel roads, and the seams stayed bone dry.
Latches and Seals: The toolbox portion of the ATI combo uses a stainless steel paddle handle. It’s recessed, so you won't snag your jeans on it. The gas struts—the little shocks that hold the lid up—are usually the first thing to fail. On the ATI, they are beefy enough to handle a lid that might be covered in an inch of ice or snow.
Pros & Cons
Pros
- .100 Aluminum Construction: Much thicker and more durable than the industry standard .063 gauge found in budget tanks.
- Space Saving: The L-shape design allows you to keep your bed floor clear for longer items like lumber or pipes under the toolbox section.
- Internal Baffles: Specifically designed to reduce fuel slosh, which improves vehicle handling and extends the life of the tank welds.
- Fully Integrated: No gaps between the tank and the toolbox means no lost tools or accumulated debris.
- Made in USA: Better quality control on the welds compared to imported units.
Cons
- Weight When Full: At 47 gallons, you're adding roughly 350-400 lbs to the front of the bed. You'll need to adjust your tire pressure accordingly.
- Height Profile: At 23.25 inches tall, it may sit slightly above the bed rails on some mid-sized or newer 'aerodynamic' half-ton trucks.
Our top-rated pick for this category. Available at Big League Accessories with 30-day returns and expert support.
The Verdict
If you are a contractor running a crew or a farmer who can't afford to haul a tractor back to the barn every time the needle hits 'E', you need a reliable fuel source. The cheap tanks are fine for occasionally filling a lawnmower, but for the daily grind, they don't hold up.
I recommend the ATI 47 Gallon Silver L-Shape Transfer Tank + Toolbox Combo for the simple reason that they didn't skimp on the metal. The .100-inch aluminum is the spec that matters most. It’s the difference between a tank that lasts the life of the truck and one that starts weeping fuel at the seams two years in.
The one thing to watch for? Check your pump's suction pipe length. Most standard pipes are made for 38-inch deep tanks. Since this L-shape is shallower on the 'foot,' you’ll need to trim your suction pipe so it sits about an inch off the bottom of the tank. Do that, bolt it down right, and this will be the last transfer tank you ever have to buy for that truck. Check out the full range of truck tool boxes to find the exact fit for your rig.
