Best Ladder Racks for Ford Transit: Vantech H1 vs The Field

It was 5:30 AM on a Tuesday in November, somewhere outside of Tacoma. The rain wasn't just falling; it was sideways, the kind of wet that finds the gaps in your 'waterproof' gear within ten minutes. I was wrestling a 32-foot extension ladder off the roof of a Ford Transit while the wind tried to turn it into a sail. The cheap, knock-off rack the client had installed was groaning under the lateral load, and I could hear the mounting bolts complaining against the sheet metal. That’s the moment you realize that saving two hundred bucks on a rack is a fool’s errand. When you’re 12 feet up or trying to secure a three-thousand-dollar load of lumber, you want hardware that doesn’t flinch.

Over the last twenty years, I’ve bolted every kind of rack imaginable to every kind of van that’s rolled off an assembly line. I’ve seen welds snap on 'heavy-duty' steel racks and watched cheap aluminum bars bow like a longbow under a few sheets of 3/4-inch ply. A ladder rack isn’t just a place to throw your gear; it’s the backbone of your mobile workshop. If it fails, you aren’t just out a ladder—you’re looking at a massive liability on the interstate and a destroyed van roof. Today, we’re looking at the big leagues, specifically focusing on the Vantech H1 system and how it stacks up against the household names you see in the hardware store parking lots.

What We're Testing

We aren't testing these racks for how they look in a catalog. We're looking at how they perform when you’re rushing to beat a storm, when the van is vibrating at 75 mph on a washboard highway, and when you’ve got a maxed-out load on a Friday afternoon. For this evaluation, we focused on the Vantech H1 Ladder Roof Rack for Ford Transit Cargo Van 2015-On - Silver. The H1 is an extruded aluminum system designed specifically for the high, medium, and low-roof configurations of the modern Transit.

Our evaluation criteria are simple but brutal. First, we look at the Mounting System: does it utilize the OEM holes, or are we turning the roof into Swiss cheese? Second, the Load Capacity: what is the real-world deflection when we hit the rated limit? Third, Weather Resistance: will the hardware be a rusted mess after one coastal winter? And finally, the Daily Grind: how much wind noise does it generate, and how easy is it to tie down a load when your fingers are numb?

The Competition

The market is flooded with 'universal' racks that claim to fit everything from a minivan to a box truck. In my experience, 'universal' usually means 'fits nothing well.' To give you a fair look at where the Vantech H1 stands, we compared it against three real-world rivals: the Weather Guard Model 205-3, the Thule TracRac Pro2, and the Adrian Steel Perimeter Rack.

Weather Guard is the name everyone knows. Their aluminum racks are built like tanks, but they often come with a tank’s price tag. The Model 205-3 for the Transit is a solid piece of kit, typically priced around $750 to $850 depending on the vendor. It features a high-gloss powder coat that looks great, but in my testing, the mounting brackets are a bit bulkier than the Vantech, which can lead to more wind resistance and a slightly more involved install.

Thule TracRac Pro2 (the van version) is a favorite for guys who want a sleeker look. It’s an aerodynamic rack that handles wind noise exceptionally well. However, when you look at the raw specs, the TracRac often tops out at a 500-lb capacity. If you're just hauling a couple of step ladders, that's fine. If you're a general contractor hauling bundles of PVC and 20-foot sticks of rebar, you're going to want the extra headroom the Vantech provides.

Adrian Steel makes a perimeter rack that is essentially a cage for your roof. It’s incredibly secure but it adds a lot of weight and height to the vehicle. It’s also significantly more expensive, often clearing the $1,000 mark once you add all the necessary cross members. It’s overkill for 80% of tradespeople.

After running the numbers and the hardware, the Vantech H1 takes the Editor's Pick. Why? Because it hits the 'Goldilocks' zone of price, capacity, and material quality. With a 750-lb capacity (on a 3-bar system) and 6063-T6 aircraft-grade aluminum construction, it outpunches the TracRac in strength and rivals the Weather Guard in durability, all while keeping the profile low and the installation simple. If you're serious about your setup, check out the full selection at the Big League Accessories Truck Racks category page.

Installation & Fit

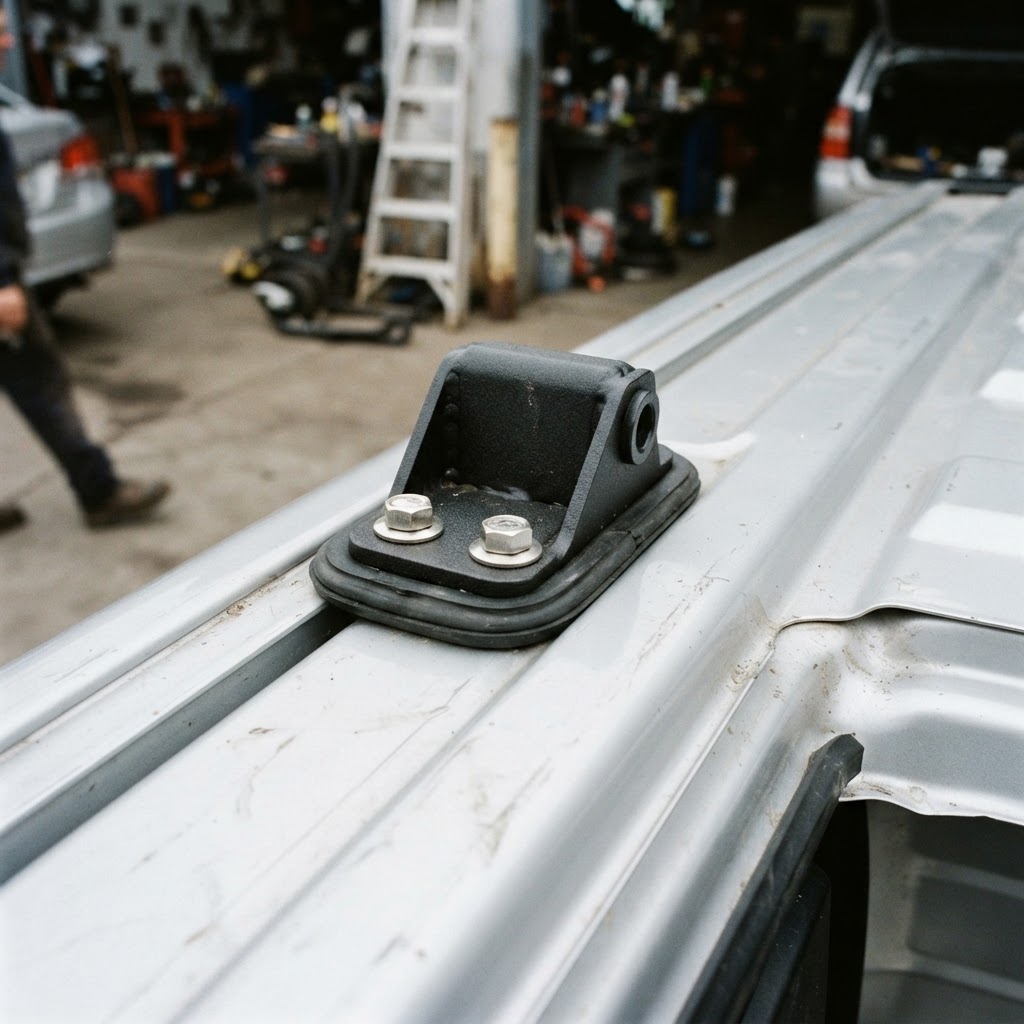

One of the biggest 'gotchas' with the Ford Transit is the roof design. Unlike older Econolines with exposed rain gutters, the Transit uses specific mounting points hidden under plastic plugs. The Vantech H1 Ladder Roof Rack for Ford Transit Cargo Van 2015-On - Silver is designed to bolt directly into these factory points.

Hardware Quality: Vantech doesn't skimp here. They use stainless steel hardware and specialized rubber gaskets. This is critical. If you buy a rack with zinc-plated bolts, they will start to bleed rust streaks down your white van within six months. The Vantech gaskets are thick enough to seal out the rain, provided you don't over-torque them and crush the life out of the rubber.

Tools & Time: You'll need a basic socket set, a ladder (obviously), and a torque wrench if you want to be precise. It took me about 75 minutes to get a 3-bar system leveled and tightened down solo. If you have a helper to pass the bars up, you could do it in 45. The only trick is ensuring the bars are perfectly perpendicular to the van's centerline; if they're off by even a fraction, you'll hear it screaming in the wind at highway speeds.

Long-Term Durability

I’ve seen H1 racks that have been on the road for five years in the salt-heavy Northeast. The anodized silver finish holds up remarkably well against UV rays—unlike powder coating, which can start to flake and peel if it gets chipped by a ladder rung. Aluminum is the superior choice for a rack because even when it gets scratched (and it will), it doesn't oxidize into a structural failure like steel does.

Vibration & Latch Wear: The H1 uses a simple, robust design. There are no complex spring-loaded latches to fail or freeze up in the winter. The uprights (ladder stoppers) are adjustable, which is a godsend when you switch from a wide extension ladder to a narrow step ladder. Over two seasons of use, the only maintenance I'd recommend is checking the mounting bolt torque every six months. The Transit’s unibody construction flexes a bit more than a traditional frame, which can occasionally loosen hardware over thousands of miles.

Pros & Cons

• High Load Capacity: 250 lbs per crossbar (750 lbs total for a 3-bar set) is top-of-class for aluminum.

• Stainless Steel Hardware: No rust streaks, no seized bolts when you need to adjust it in three years.

• Low Profile: Only adds about 7 inches to the height of the van, which is crucial for parking garages.

• Modular Design: Easy to add or remove bars depending on your specific needs.

• Wind Noise: Like all rectangular-bar racks, you’ll get a slight whistle if you don’t install the included wind strips correctly.

• Silver Only: The silver anodized look is professional, but if you want a blacked-out look, you'll have to look elsewhere.

The Verdict

If you're a professional who relies on your van every single day, the Vantech H1 is the smartest investment you can make for your roof. It bypasses the flimsiness of the budget brands and matches the utility of the high-end industrial systems without the four-figure price tag. It’s built from the right materials (A6063 Aluminum and Stainless Steel) and it mounts the right way (OEM holes).

The one thing to watch for? The gaskets. When you’re installing it, make sure the roof surface is clinical-level clean. Any grit or dirt trapped under that rubber gasket will eventually create a path for water to seep into your headliner. Get that seal right, and you’ll never have to think about your rack again—it’ll just be there, doing its job, while you’re busy doing yours.
