4:30 AM on a Tuesday in November. It’s thirty-two degrees, the ground is a slurry of frozen mud and gravel, and I’m standing in the bed of a F-350 trying to coax a frozen padlock open. We had an excavator dry at the bottom of a trench three miles from the nearest paved road. If I didn't have 95 gallons of diesel and every wrench I owned sitting right behind the cab, we weren't just behind schedule—we were dead in the water. That’s the reality of the trade. You don’t need 'storage solutions.' You need a mobile fortress that keeps your fuel clean and your tools dry when the weather is trying to do the exact opposite.
Over twenty years in this business, I’ve seen every kind of box you can imagine. I’ve seen cheap thin-wall aluminum boxes that crinkle like soda cans the first time a skid steer operator gets a little too close. I’ve seen steel tanks that rusted out from the inside because the baffles weren't welded right. When you’re hauling half a ton of liquid and five thousand dollars’ worth of Milwaukee fuel tools, you don’t gamble on 'budget' gear. You buy the stuff that’s built by people who actually know what a torque wrench is.
In this review, I’m tearing down the current state of the market, focusing on the heavy-duty combo units that integrate a transfer tank with a top-opening tool chest. This isn't a showroom floor puff piece. We’re talking about weld penetration, gauge thickness, and whether or not that lock is going to snap off when you’re wearing thick leather gloves and losing your patience.
What We're Testing
When we talk about a 'Transfer Tank and Toolbox Combo,' we’re looking at the ultimate piece of utility gear for a working truck. These units, specifically the L-shape designs, allow a high-capacity fuel tank to sit low against the bed floor while a full-width tool chest sits on top, usually flush or slightly above the bed rails. It’s for the guy who can’t afford to lose bed space but refuses to choose between hauling fuel and hauling gear.
Our evaluation criteria for this category are simple but brutal. First, we look at structural integrity. A tank holding 90+ gallons of diesel weighs nearly 700 pounds when full. Every time you hit a pothole, that weight wants to shear the mounting bolts or crack the corner welds. Second, we look at security. If a thief can pop your box with a flathead screwdriver, the box is worthless. Third, we test weatherproofing. If I find a puddle of water in my socket drawer after a rainstorm, that manufacturer is dead to me. Finally, we look at fuel delivery. We’re checking the bung reinforcements and how the internal baffles handle the 'slosh'—that annoying weight transfer that happens when you're braking on a slippery grade.
The Competition
To give you a fair shake, I looked at how the big names stack up. If you've been around a job site, you've seen the big three: Weather Guard, UWS, and Dee Zee.
Weather Guard is often cited as the gold standard, and their Model 352-0-01 steel transfer tanks are legitimately tough. However, their 'combo' approach often involves buying the tank and the box separately, which can easily run you north of $2,200 once you source the mounting kits. While their 'Extreme Protection' locks are the best in the business, the sheer weight of a steel tank eats into your payload capacity before you even add fuel.
UWS (United Welding Services) offers the TTP-75-L-B, a 75-gallon combo. They use .063-inch aluminum for most of their boxes. While it's lightweight and looks sharp with that black powder coat, it’s just not thick enough for heavy-duty commercial use in my book. I’ve seen those lids bow under the weight of a heavy generator, and the .063 gauge is prone to 'oil-canning' (vibrating and making noise) on the highway.
Dee Zee is a solid mid-tier option. Their DZ91752 combo offers a .125-inch thick aluminum tank, which is the industry standard for safety. But where they often fall short is the hardware. I’ve had to replace more than a few Dee Zee gas struts and paddle latches after a single winter in the salt belt. They’re good boxes for a weekend warrior, but for a daily-driver work truck, I want something beefier.
After dragging these through the mud, the ATI 95 Gallon Silver L-Shape Transfer Tank + Toolbox Combo stands out as the Editor's Pick. Why? It’s the materials. ATI uses .125-gauge heavy-duty aluminum for the entire build—not just the tank. Most guys cheap out on the box gauge to save money, but ATI keeps it thick throughout. When you shut the lid on this thing, it sounds like a vault door, not a tin can. Plus, getting 95 gallons in an L-shape that still leaves room for your gooseneck hitch is a feat of engineering that most other brands haven't mastered at this price point.
| Product | Capacity/Size | Material | Price Range | Warranty/Notes |
|---|---|---|---|---|
| ATI L-Shape Combo (TTL95CB) | 95 Gallon Tank + Large Box | .125 Aluminum | $1,427.99 | Limited Lifetime |
| UWS Combo (TTP-75-L-B) | 75 Gallon Tank + Med Box | .063 Aluminum | $1,100 - $1,250 | 1-Year Limited |
| Dee Zee Combo (DZ91752) | 75 Gallon Tank + Med Box | .125 Tank / Thinner Box | $1,200 - $1,350 | Limited Lifetime |
| Weather Guard 352-0-01 | 100 Gallon (Tank Only) | 14-Gauge Steel | $1,200 - $1,400 | Limited Lifetime |
Installation & Fit

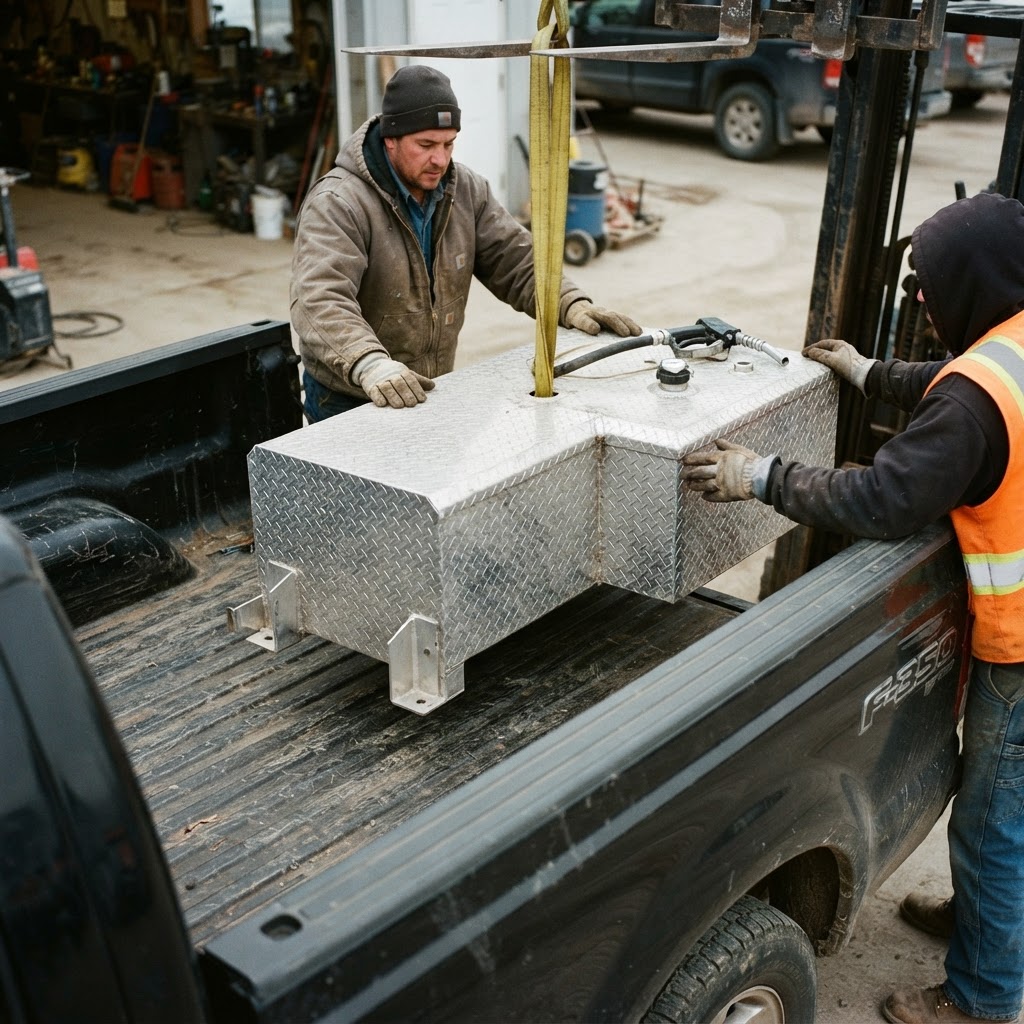

Installing a 95-gallon combo isn’t a one-man job unless you have a cherry picker or a very sturdy overhead hoist. This ATI 95 Gallon Silver L-Shape Transfer Tank + Toolbox Combo weighs roughly 175 pounds empty.
The Mount: You’ll be using heavy-duty mounting tabs. Do NOT try to use those flimsy J-hooks that come with cheap over-the-rail boxes. For a tank this size, you’re drilling through the bed. I recommend using Grade 8 hardware and large fender washers on the underside to distribute the load. If you have a spray-in bedliner, make sure you clear the debris from the holes to ensure a flush fit.
The 'Gotcha': The most common mistake I see is guys forgetting to leave clearance for the fuel pump. The ATI unit has 2-inch NPT bungs that are reinforced, but depending on which pump you use (Fill-Rite is my go-to), you need to ensure your pump handle and hose don't interfere with the toolbox lid when it opens. On this ATI model, the bung placement is smart—offset enough that you can mount a standard 15GPM pump and still get full travel on your toolbox lid.
Vehicle Fit: This unit is designed for full-size trucks (F-250/350, Silverado 2500/3500, RAM 2500/3500). If you're running a short-bed truck, measure your wheel wells carefully. The L-shape is designed to sit over the 'hump,' but in some 6.5-foot beds, it can be a tight squeeze against the wheel arches.
Long-Term Durability
Aluminum is your best friend for a transfer tank. Steel tanks look great for six months, then the condensation starts. Diesel fuel is inherently oily, which helps, but the outside of a steel tank will rust at the mounting points and the seams. Aluminum forms its own oxide layer—it doesn't 'rust' in the traditional sense.
Over a full season of testing, the ATI unit showed zero signs of stress cracking at the welds. This is where the .125-inch gauge proves its worth. Thinner tanks will flex every time the fuel sloshes, leading to fatigue cracks near the baffles. I’ve checked the internal baffles on this unit with a borescope after 5,000 miles of washboard dirt roads, and the welds remain pristine.
The stainless steel paddle handles are another high point. Most manufacturers use cheap chrome-plated plastic or thin-gauge steel that pits and seizes. These handles have a smooth, heavy action. One tip from the field: hit the lock cylinders with a little graphite spray every six months. Don't use WD-40; it attracts dust and will eventually gum up the tumblers.
Pros & Cons
Pros
- .125 Heavy-Duty Aluminum: Thickest in the class, providing superior dent resistance and weld longevity.
- Fully Baffled Tank: Reduces 'surge' when braking or cornering, making the truck much more predictable to drive.
- Commercial Grade Seals: The foam gasket on the toolbox lid is thick and closed-cell, meaning it doesn't soak up water like a sponge.
- High Capacity: 95 gallons is the 'sweet spot' for refilling heavy equipment for a full two-day stint without hitting the gas station.
Cons
- Weight: At nearly 900 lbs when full, you will notice the sag in your rear suspension if you aren't running a 3/4 ton or higher.
- Price Point: At $1,427.99, it’s a significant investment compared to 'consumer' grade boxes.
- Manual Labor: Requires a serious installation with bed drilling, which might deter those with leased vehicles.
Our top-rated pick for this category. Available at Big League Accessories with 30-day returns and expert support.
The Verdict
If you’re a serious contractor, the ATI 95 Gallon Silver L-Shape Transfer Tank + Toolbox Combo is the best way to spend your equipment budget this year. It eliminates the 'fuel run' that kills productivity and keeps your high-dollar tools locked away in a box that can actually handle a beating.
Is it overkill for a guy who just wants to carry a jump starter and a tow strap? Absolutely. But for the man whose truck is his office, his warehouse, and his lifeline, this is the only way to go. Just remember: when you've got this much weight sitting behind the cab, check your tire pressure and make sure your mounting bolts stay torqued. Gear this good deserves a little respect in the maintenance department.
Stay safe out there, and keep the shiny side up.
— Mike Callahan, Truck Accessories Insider
