The Ultimate Truck Tool Box Guide: Field-Tested for the Real World

It was 5:30 AM in the middle of a February freeze in North Dakota, and I was standing in six inches of slush trying to pour diesel into a thirsty excavator from a five-gallon plastic jug. The wind was howling, my fingers were numb, and half the fuel was ending up on my boots instead of the tank. That was the moment I decided I was done playing games with amateur-hour gear. If you’re a contractor or a tradesman, your truck isn’t just a ride; it’s your mobile headquarters, your workshop, and your lifeline. When you’re out in the sticks, you don’t have time for gear that fails or storage that leaks. You need a setup that works as hard as you do. That’s where a serious truck tool box comes in. But we’re not just talking about a place to throw your rusty wrenches. We’re talking about the heavy-duty, multi-functional units that change how you operate on a job site. I’ve spent thirty years bolting, welding, and occasionally cursing at truck accessories, and I’ve learned one thing: you get what you pay for. A cheap box will rattle itself apart in a season, and a poorly designed tank is a rolling hazard. Today, we’re looking at the gear that actually survives the grind. ## What We're Testing We aren't just looking at a box to keep your rain gear dry. We are putting the ATI 47 Gallon Silver L-Shape Transfer Tank + Toolbox Combo through the ringer. This isn't your standard crossover box. This is a dual-purpose beast designed for the guy who needs to carry a full load of tools and enough fuel to keep the whole crew running without hitting a gas station every four hours. We evaluated this unit based on four critical pillars: mounting integrity, load capacity, weather sealing, and daily ergonomics. We didn't just look at it in a showroom; we looked at how it handles a bed full of gravel, how the latches respond when they’re caked in dried mud, and whether that L-shape design actually leaves enough room for a 5th wheel hitch. This unit is built from 0.125-inch thick aluminum—that’s the industry standard for 'don't mess with me.' It’s DOT compliant, meaning it’s legal for transporting diesel, gasoline, and even aviation fuel. That’s a big deal because the DOT doesn't hand out those certifications for fun. It means the welds are pressure-tested and the venting system is engineered to keep you from turning your truck bed into a Roman candle.

The Competition In the world of truck storage, there are a few names that everyone knows. You’ve got Weather Guard, which is often considered the gold standard for pure tool storage. Their All-Purpose Chests are built like tanks, featuring extreme security locks and thick-gauge aluminum. However, if you need to carry fuel, you’re looking at buying a separate tank, which eats up your entire bed. A Weather Guard chest will run you anywhere from $835 to over $1,200 just for the box. Then you’ve got UWS. They make a solid, mid-range product that I’ve installed on dozens of fleet trucks. Their Standard Utility Chests are reliable and usually come in around the $460 to $680 mark. They’re great for the price, but the aluminum is often a bit thinner than the heavy-duty ATI or Weather Guard units, and I’ve seen them dent if you’re too aggressive with a sledgehammer in the bed. Dee Zee is the budget-friendly option you’ll see at most big-box retailers. Their Red Label series is decent for a weekend warrior, but in my experience, the hinges and latches start to get finicky after a year of heavy job-site use. They offer poly boxes for under $300, but if you’re a pro, you want metal. While these brands all have their place, they often force you to choose between storage and fuel. The RDS combo is another player in the dual-purpose market, but they often lack the specific DOT certifications for gasoline that the ATI unit carries. After putting them head-to-head, the ATI 47 Gallon Silver L-Shape Transfer Tank + Toolbox Combo is our top pick. The reason is simple: it’s the most efficient use of space I’ve ever seen in a truck bed. You get 47 gallons of fuel and a full-sized toolbox in a footprint that still lets you pull a trailer. For a working contractor, that’s the holy grail.

Installation & Fit Listen, don't be the rookie who tries to install this with a cordless screwdriver and some wood screws. This is a 135-pound unit empty, and when you fill it with 47 gallons of diesel, you’re adding another 330 pounds. You are looking at nearly 500 pounds of dead weight sitting behind your cab. You need to bolt this thing down like your life depends on it, because in a collision, it does. The ATI combo comes with integrated mounting tabs. You’re going to need a heavy-duty drill and some cobalt bits because you’re going through the truck bed and likely a frame support. I always recommend using Grade 8 hardware—don't cheap out on the bolts. The 'L-shape' is the secret sauce here. It’s designed to sit low in the bed, which is a lifesaver for visibility and for anyone running a 5th wheel or gooseneck hitch. You’ve got about 39.25 inches of total width including the tabs, so measure your wheel wells twice before you order. One 'gotcha' I’ve run into: the pump. This unit is 'pump ready,' but it doesn't come with one. You’ll need to pick up a 12V transfer pump. When you’re wiring that pump, run the wires through a dedicated fuse and use a loom. I’ve seen too many 'pro' installs where the wires are just draped over the side of the bed, waiting to get snagged by a piece of rebar.

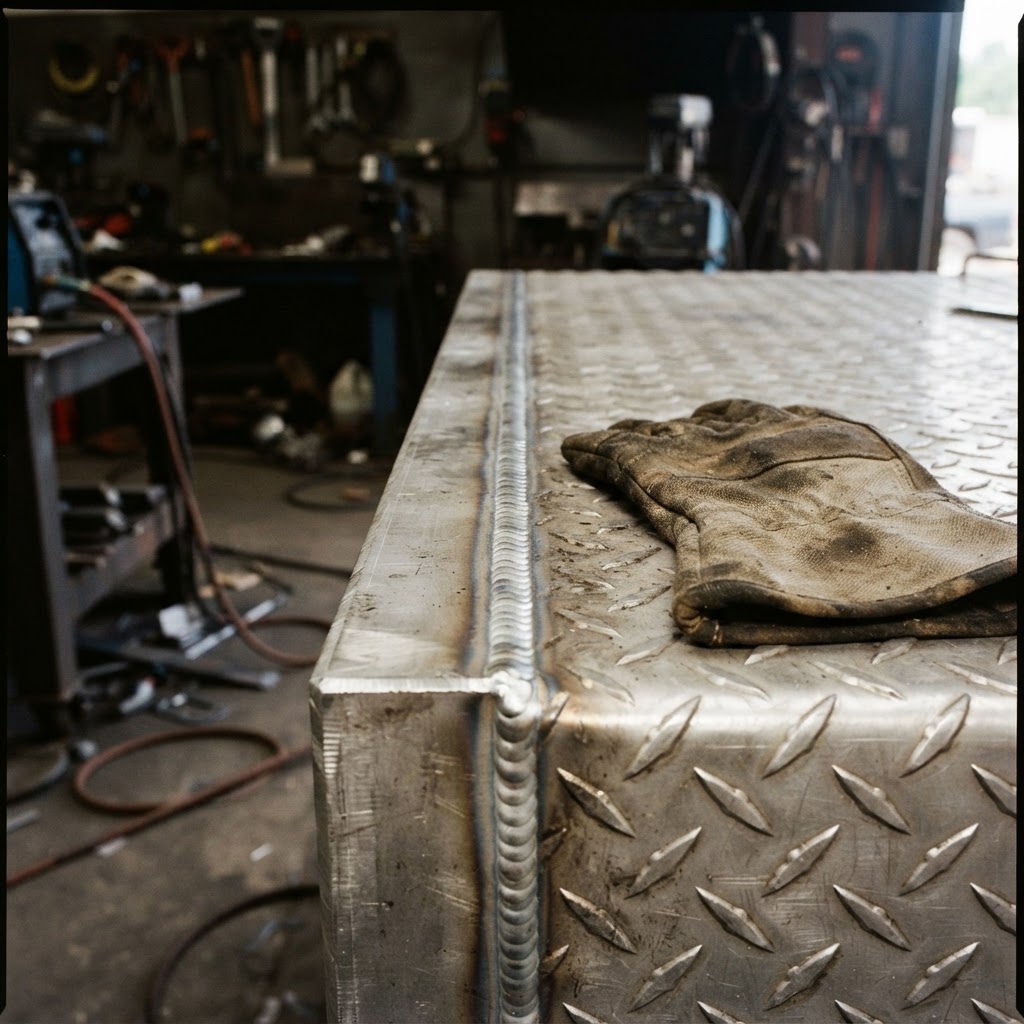

Long-Term Durability I’ve seen these ATI tanks after three years of service in the oil fields, and they hold up. The 0.125-inch aluminum is thick enough to resist the 'oil-canning' effect you get with cheaper, thinner boxes that vibrate until the seams crack. The internal baffles are the unsung heroes here. When you’re hauling 47 gallons of liquid, that fuel wants to slosh back and forth every time you hit the brakes or take a corner. Without baffles, that weight shift can actually push your truck around. ATI welds these baffles inside to break up the movement, which saves your suspension and your sanity. The toolbox portion uses a full-length stainless steel piano hinge. I’ve seen guys try to use boxes with individual hinges that eventually sag or bind; a piano hinge distributes the weight of the lid evenly so it opens straight every time, even if the truck is parked on an incline. The weather stripping is high-density foam that actually creates a vacuum seal. I’ve pressure-washed these boxes, and the inside stays bone-dry. Just keep the lock cylinders lubed with a bit of graphite spray once a season, and they won't freeze up on you in December. ## Pros & Cons Pros * DOT Certified Versatility: Unlike many competitors, this is legal for gasoline, diesel, and even methanol, giving you total job-site flexibility. * Space-Saving L-Shape: The low-profile design is perfect for 5th wheel towers and maintains excellent rear-view visibility. * Heavy-Duty Construction: The 0.125-inch thick aluminum and internal baffles are built for industrial abuse, not just grocery runs. * Secure Storage: The lockable vent and prevent filler cap keep your fuel safe from 'borrowers' and the elements. Cons * Pump Not Included: You’ll need to budget an extra $300-$500 for a quality 12V transfer pump and hose kit. * Significant Weight: Once full, you’re adding 500 lbs to the bed; make sure your payload capacity and tire pressure are adjusted accordingly.

The Verdict The bottom line is this: if you’re just hauling a few bungee cords and a spare tire, go buy a cheap plastic chest. But if you’re running a business out of your truck, the ATI 47 Gallon Silver L-Shape Transfer Tank + Toolbox Combo is an investment that pays for itself in saved trips to the pump and organized gear. It’s rugged, it’s American-made, and it’s built to outlast the truck you bolt it to. The one thing to watch for? Clearance. Before you pull the trigger, measure the distance between your wheel wells and the height of your bed rails. This unit is 18 inches high, which fits most full-size pickups perfectly, but always double-check your specific model. If you want to stop worrying about your gear and start focusing on the job, this is the box you want in your bed.
